JM Family Campus Parking Garage

JM Family Enterprises engaged PGAL to transform its corporate campus into a more sustainable, pedestrian-oriented environment through thoughtful infrastructure planning and integrated design. The master plan organizes parking at opposite ends of the site by leveraging an existing 352-car garage and introducing a new seven-level, 816-car precast structure. This approach supports 270,000 square feet of new office development while preserving 200,000 square feet of existing facilities.

Client

JM Family Enterprises

Construction Delivery

Design-Build

PGAL Scope

Full Architectural Services, Master Planning, Programming

Completion Date

2020

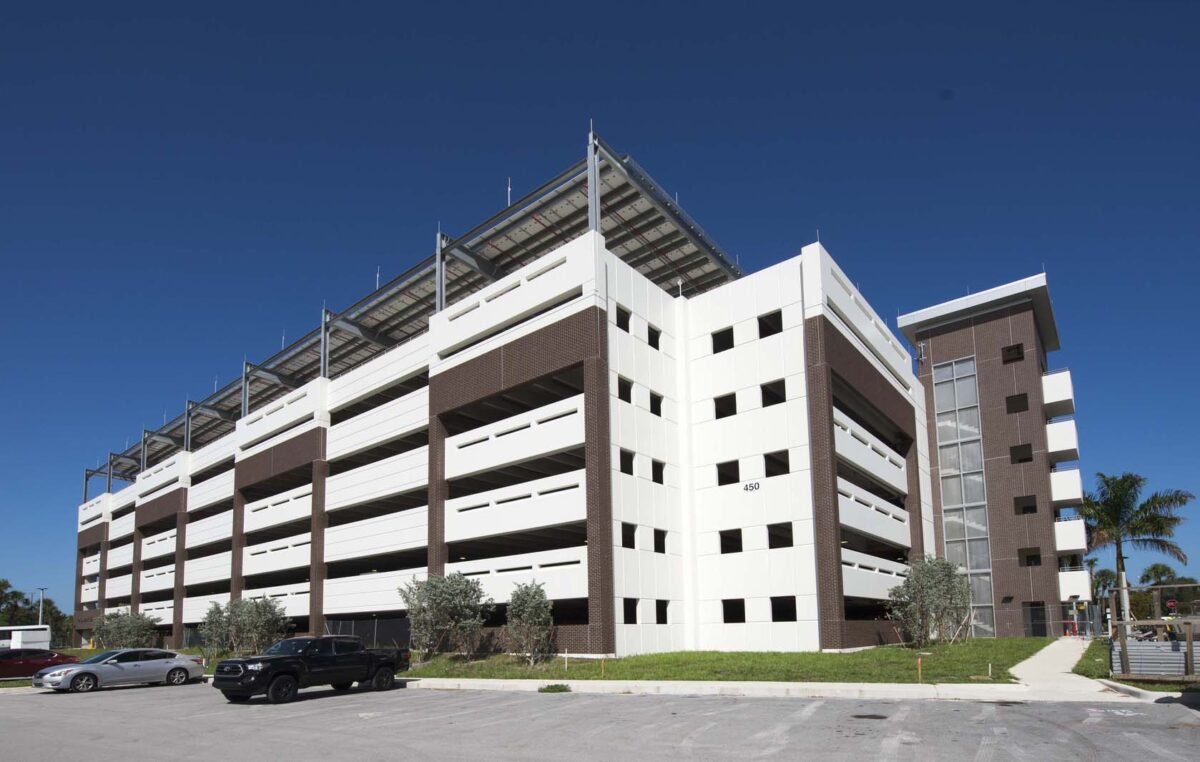

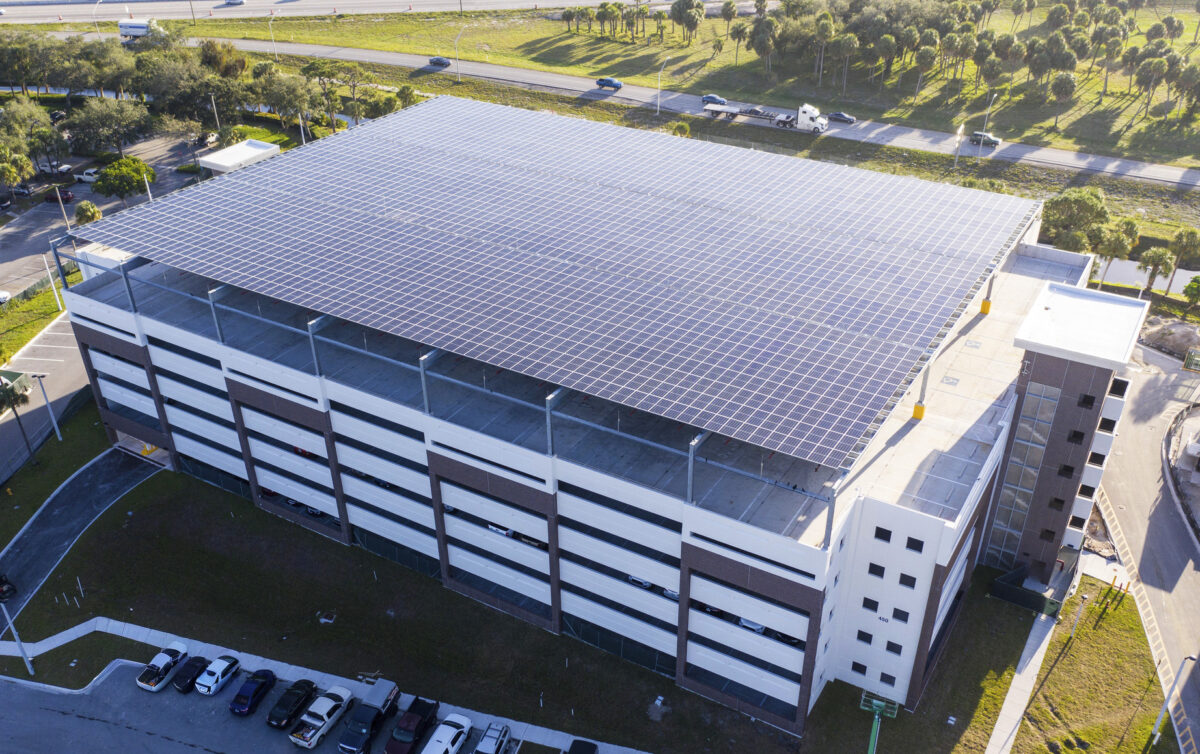

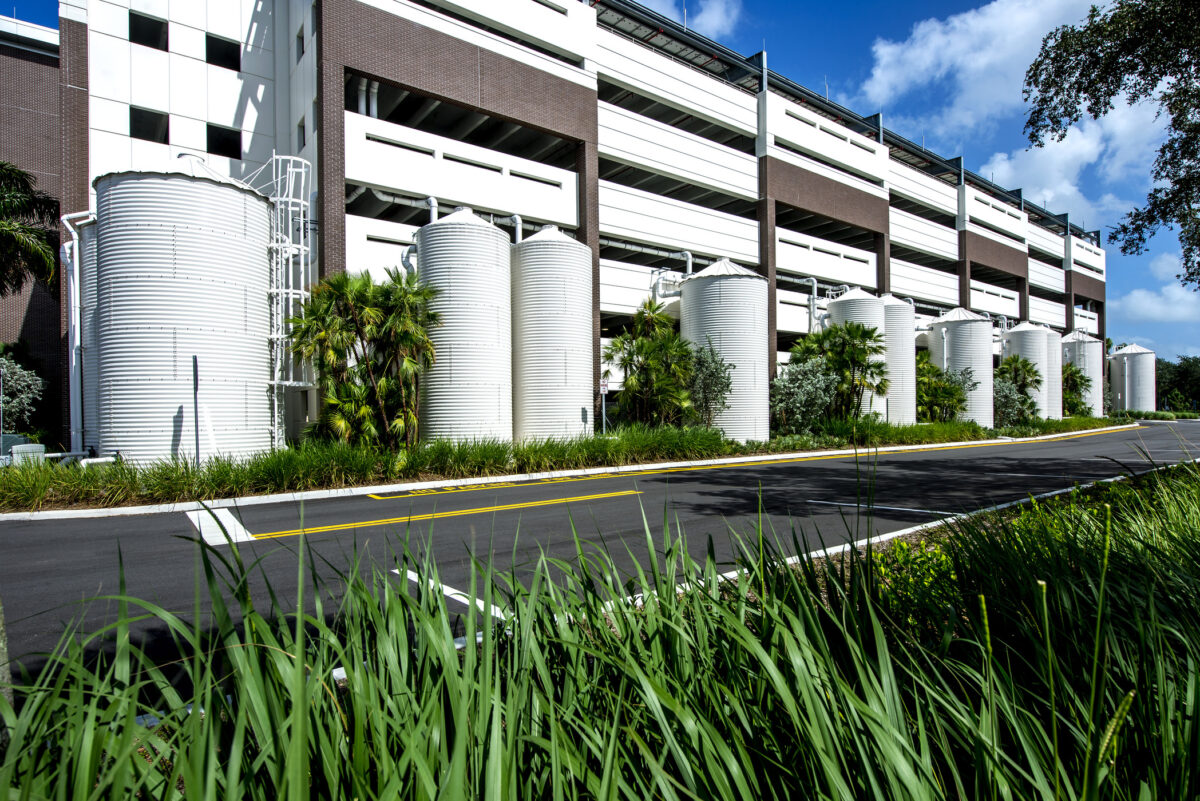

The new garage aligns with the campus’ architectural language and plays a central role in meeting environmental goals. A 42,000-square-foot photovoltaic canopy atop the structure generates roughly 80 percent of the energy required to operate the central utility plant. The canopy also facilitates rainwater collection, feeding a network of 13 silo-inspired cisterns ranging from 10,000 to 27,000 gallons in capacity.

Together, the cisterns hold up to 250,000 gallons and support a landscape irrigation system that significantly reduces reliance on municipal water. Depending on seasonal rainfall, the system harvests between 53,000 and 220,000 gallons per month, with an on-site well supplementing water needs during drier periods. Over the course of a year, only 18 percent of irrigation water is sourced externally.
